CMU Rebar Spacing: Vertical & Horizontal Guide

Quick answer: CMU rebar spacing comes from the approved wall schedule and details, together with the code provisions that apply to that wall. There is no single spacing that fits every wall. Read “O.C.” as center-to-center, and check vertical bars, bond-beam bars, bed-joint reinforcement, openings, laps, dowels, and grouted cells against the matching plan details before work starts.

Plan itemWhat it identifiesWhat to verify
Vertical reinforcementBars running through selected CMU cellsBar size, spacing O.C., cell location, start and end points, and footing connection
Bond-beam barsHorizontal bars in a bond-beam unit or designed grouted courseCourse or elevation, size, continuity, laps, and opening details
Bed-joint reinforcementWire placed in a horizontal mortar jointSpecified courses, continuity, corners, intersections, and control-joint details
Openings and endsLocal bars, lintels, dowels, and wall connectionsUse the specific elevation or detail; check both jambs and wall terminations
Grout and anchorageCells and bond-beam spaces filled with groutWhich spaces are filled, bar position, lap or development notes, and placement sequence

Use this guide to read reinforcement notes and compare them with the wall layout. It does not select the bar spacing or replace an engineer’s approved design.

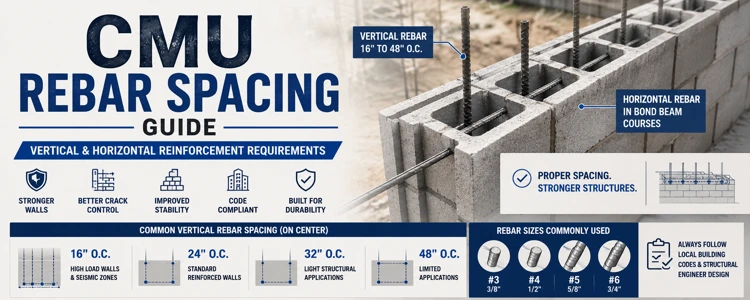

What CMU rebar spacing means

Spacing is the distance between reinforcement locations. A note such as “#4 at 24 in. O.C.” identifies a bar size and a center-to-center interval where that callout applies. The note does not, by itself, tell you the bar’s position in the cell, its end condition, lap, dowel connection, or which cells receive grout. Match it to the wall mark, elevation, schedule, and referenced detail.

Bar spacing is not automatically the same as block spacing. An 8-inch nominal CMU wall does not mean a bar belongs in every 8-inch cell. The selected cores, bar position, grout space, and unit layout must match the approved details. See the CMU wall thickness guide for nominal and actual wall dimensions.

Vertical bars, bond-beam bars, and joint reinforcement

Vertical bars run through the designated cores. The schedule or wall elevation identifies their size, spacing, cell position, lap or splice, and connection to the foundation or other supporting construction.

Bond-beam bars sit in a bond-beam unit or another specified grouted course. Details identify the course, bar size, continuity, laps, and locations such as the top of a wall or around openings. Read what a bond-beam block is for the unit’s role.

Bed-joint reinforcement is welded wire installed in a mortar joint. It is a separate product and detail from reinforcing bars in a bond beam. Follow the plans for each; do not substitute one for the other. Our CMU wall reinforcement guide covers how the parts work together.

Why there is no universal spacing chart

Reinforcement depends on the wall’s purpose and design conditions: height and thickness, top and bottom support, openings, applied loads, soil and backfill for foundation walls, wind or seismic requirements, unit configuration, and locally adopted code. A foundation wall, freestanding wall, retaining wall, and shear wall can have different requirements even when they use similar CMU.

Building-code tables apply only to the wall categories and conditions they describe. The 2024 International Residential Code, for example, has specific provisions for certain masonry walls and grouted construction; those provisions are not one spacing rule for every CMU wall. Confirm the code edition and local amendments that apply to the project. For related contexts, see our CMU foundation wall guide and CMU retaining wall guide.

How to read rebar spacing on CMU wall plans

  1. Find the wall mark. Match the plan label to the wall schedule, elevation, sections, and referenced details.
  2. Read the vertical-bar note. Record the size, O.C. spacing, cell position, start and end points, and lap or splice requirements.
  3. Read horizontal details separately. Identify bond-beam courses, bars, bed-joint wire, and elevation-specific notes.
  4. Check special locations. Review corners, intersections, wall ends, height changes, control joints, and both sides of openings for dedicated details.
  5. Match grout to the reinforcement. Confirm which cells and bond-beam spaces are filled and how placement is sequenced.
  6. Resolve conflicts before placement. If the schedule, unit layout, and field condition do not align, ask the project designer for written clarification before cutting, moving, or grouting bars.

For a preliminary count on a straight run with a bar at both ends, divide the run length by the maximum spacing, round the spaces up, then add one bar. For example, 20 feet is 240 inches. At a maximum 32-inch interval, 240 ÷ 32 rounds up to 8 spaces, so the simple count is 9 bars. This takeoff shortcut does not account for extra bars at openings, corners, or other detailed locations.

Openings, corners, and wall connections

Doors, windows, wall intersections, corners, ends, and height changes can interrupt a regular bar layout. Drawings may call for additional or differently positioned bars, lintels, bond beams, dowels, laps, or other connections. Do not add, remove, or shift a bar based on the typical spacing note alone. At a control joint, coordinate the bar and joint-reinforcement details; the CMU control-joint guide covers the joint’s separate crack-control role.

Grout the cells shown in the design

Reinforcement and grout details work together. The approved plan identifies which cells or bond-beam spaces are filled and specifies the grout and placement procedure. Do not assume every cell is filled, or that a bar in an ungrouted cell meets the design. The 2024 IRC requires cells containing reinforcement to be filled with grout in the grouted-masonry construction cases it governs; project documents and adopted code determine the actual requirements.

Our CMU grouting methods guide explains placement methods. The CMU grout calculator can estimate material quantity from entered dimensions and assumptions, but it does not choose which cells need grout. After the bar schedule is specified, the rebar calculator can help with a takeoff estimate.

Common CMU rebar-spacing mistakes

  • Using a generic spacing range in place of the project wall schedule.
  • Confusing center-to-center spacing with the clear distance between bars.
  • Assuming every cell needs a bar or grout.
  • Counting bond-beam bars and bed-joint wire as the same reinforcement.
  • Applying a typical-wall note to openings, corners, control joints, or wall ends without checking their details.
  • Moving a bar to fit a cell or grout space without design-team approval.

Frequently asked questions

What is the typical rebar spacing in a CMU wall?

There is no one interval for every CMU wall. The approved wall schedule and applicable code set the spacing for that wall’s design conditions. Do not use a general example to lay out reinforcement.

What does 16 inches O.C. mean on a block-wall plan?

It means the locations are measured 16 inches from the center of one bar to the center of the next where that note applies. It does not identify bar size, cell position, end conditions, laps, or the code case.

Does an 8-inch CMU wall need rebar every 8 inches?

No. Nominal wall thickness does not set bar spacing. Follow the wall schedule and details for the selected cells and bar locations.

How far apart should vertical rebar be in a concrete block wall?

Use the vertical spacing shown for that wall mark on the approved drawings. The answer changes with wall design, code conditions, supports, loads, openings, and other project details.

Is horizontal reinforcement the same as vertical rebar?

No. Vertical bars, bond-beam bars, and bed-joint wire are separate details. Check each one in its own schedule or drawing note.

Can a calculator design my CMU wall?

A quantity calculator can estimate materials from entered dimensions, but it cannot verify loads, anchorage, adopted code, or the structural design. Use it for takeoff after the reinforcement layout is specified.

Technical note: This guide was checked against the 2024 International Residential Code and CMHA masonry guidance on October 31, 2026. Code applicability varies by jurisdiction and wall type.
